PRODUCT

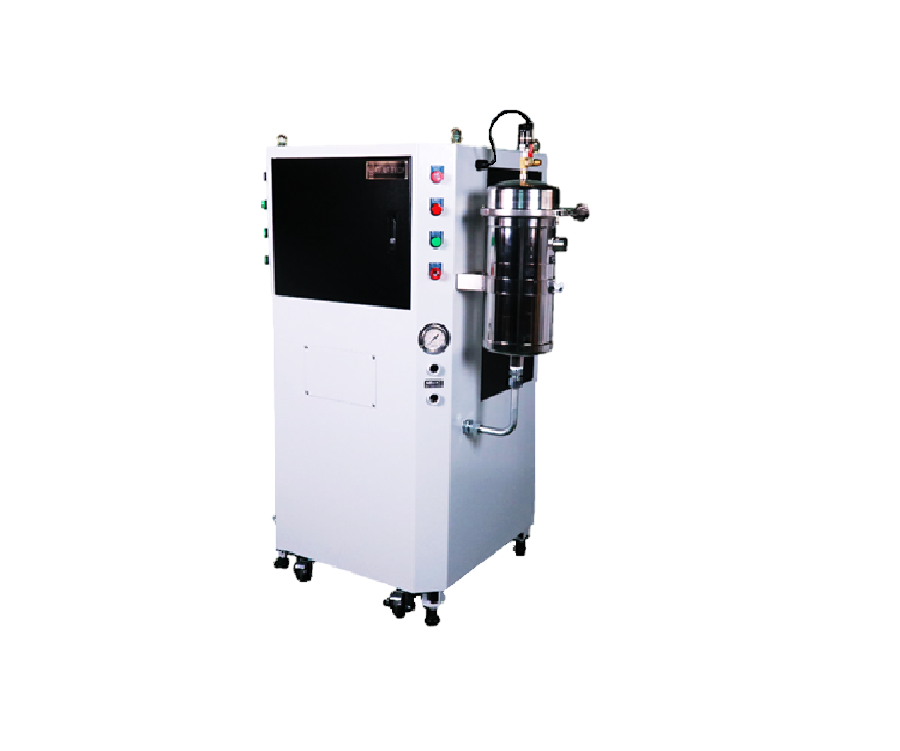

TSC-70SS/A

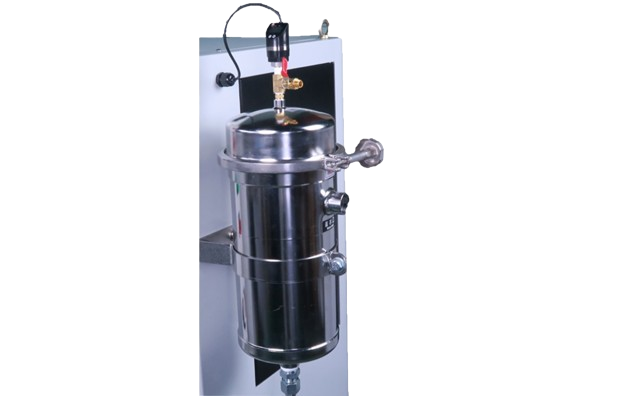

■ Unlike the TSC-70SS economy model, this one includes an additional low-pressure bag filter with the following features:
(1) It is a quick water filtration device that uses pressure and internal filter media to filter various liquids, effectively separating contaminants and thoroughly improving liquid quality.
(2) The filter body is welded from stainless steel plates and features a fully open top cover with ring bolts for easy cleaning and filter media replacement, significantly improving work efficiency.
(3) The filter surface is treated with electrolytic polishing, making it both aesthetically pleasing and practical.
■ A warning device is installed on the low-pressure bag filter to remind users to clean and replace the filter media.
(1) It is a quick water filtration device that uses pressure and internal filter media to filter various liquids, effectively separating contaminants and thoroughly improving liquid quality.
(2) The filter body is welded from stainless steel plates and features a fully open top cover with ring bolts for easy cleaning and filter media replacement, significantly improving work efficiency.
(3) The filter surface is treated with electrolytic polishing, making it both aesthetically pleasing and practical.
■ A warning device is installed on the low-pressure bag filter to remind users to clean and replace the filter media.
| Standard/Option | TSC-70SS/A |
| Human Machine Interface Control Panel | ▲ |
| Low-pressure Bag Filter | ◯ |
| Water Tank | ◯ |
| High Pressure Pump | ◯ |
| Motor | 7.5Hp / 4P |
| Belt Drive | ◯ |

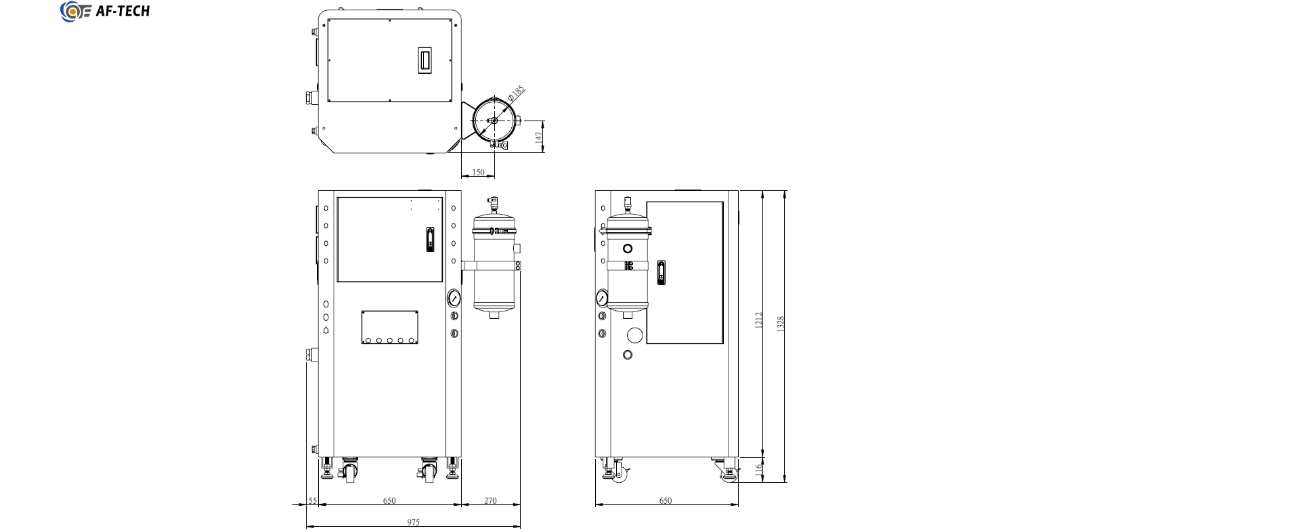

| Size(mm) | 650x650x1328 |
| Water Tank Cpacity(Liter) | 170 |
| Maximum Operating Pressure(Bar) | 70 |
| Maximum Water Flow Rate(L/MIN) | 30 |
| Applicable voltage(V) | 220V |
| Applicable frequency(Hz) | 50Hz/60Hz |
| Filtration Accuracy(μ) | 5-40μ |
| Filter Type | Single-channel High-flow Filter |
◯＝Standard ▲＝Option Ｘ＝N/A |
|
