High Pressure Filter DHHP-08
Materials:Aluminum alloy
Operating Pressure:210kg/cm²(3000psi)
Maximum Pressure:245 kg/cm²(3500psi)
Usage: filtration for high-pressure air, gases, water, and hydraulic systems.
Operating Pressure:210kg/cm²(3000psi)
Maximum Pressure:245 kg/cm²(3500psi)
Usage: filtration for high-pressure air, gases, water, and hydraulic systems.

Features:
- Applicable for high-pressure liquid filtration: High-pressure filters can withstand the filtration of high-pressure liquids, typically achieving pressures of 1000 psi or higher.
- High filtration efficiency: High-pressure filters often use high-precision filtration media, effectively removing small particles and impurities from the liquid.
- Long service life: High-pressure filters are generally made from materials that are resistant to high pressure and corrosion, such as stainless steel and aluminum alloy, resulting in a longer service life.
- Easy maintenance: High-pressure filters are usually designed with a modular structure, making it easy to disassemble, clean, and replace the filtration media, facilitating maintenance.
- Stable operation: High-pressure filters typically utilize an automatic control system to achieve stable filtration results and operation, and they can monitor parameters such as system pressure and flow rate.

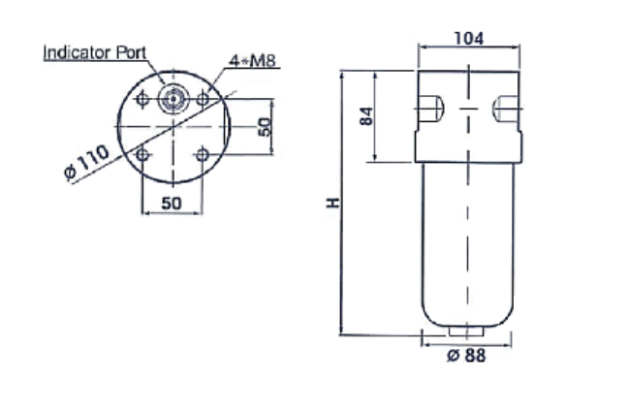

型式 TYPE | 長度Lengths H |
1 | 295mm |
2 | 380mm |
濾芯 Filter Assembly | 公稱流量 Flow rate 1/min | 型式 Type | 接口尺寸Port size BSP/NPT/SAE | 重量 Weight(KG) |
A03 | 70 | 1 | 1" | 3.2 |
A06 | 90 | |||
A10 | 100 | |||
A25 | 120 | |||
T40 | 140 | |||
A03 | 90 | 2 | 1" | 3.9 |
A06 | 100 | |||
A10 | 120 | |||
A25 | 150 | |||
T40 | 200 |
DHP08-TABLE1-TABLE2-TABLE3
TABLE1
Code | Filter Media |
A3 | Filter 3μ B≧1000 |
A6 | Filter 6μ B≧1000 |
A10 | Filter 10μ B≧1000 |
A25 | Filter 25μ B≧1000 |
T40 | wire mesh 40μ |
TABLE2
Code | Filter Indicator |
N | With Plug |
V | Visual |
E | Visual-Electrical |
TABLE3
Code | Seals |
N | NBR |
V | VITON |
