PRODUCT

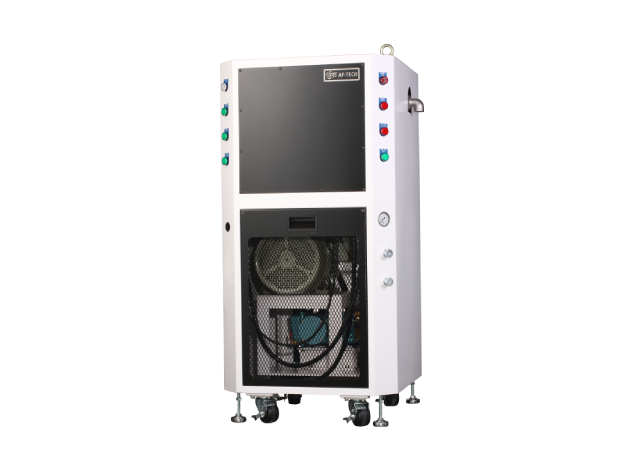

TSC-70SS Economic Type
■ The single-channel high-flow filter provides users with the most economical consideration between investment cost and operating cost.
■ The most economical design, the most space-saving needs and the easiest operation control interface are the ideal features for the need of high-pressure water of all industrial machinery.
■ This machine occupies less space, which is designed for narrow space high-pressure water system, suitable for CNC machining centers, composite processing machines, CNC lathes and other machinery.
■ The most economical design, the most space-saving needs and the easiest operation control interface are the ideal features for the need of high-pressure water of all industrial machinery.
■ This machine occupies less space, which is designed for narrow space high-pressure water system, suitable for CNC machining centers, composite processing machines, CNC lathes and other machinery.
| Standard/Option | TSC-70SS(Economic Type) |
| Human Machine Interface Control Panel | Ｘ |
| Precision Double-switch Filter System | Ｘ |
| Water Tank | ◯ |
| High Pressure Pump | ◯ |
| Motor | 7.5Hp / 4P |
| Belt Drive | ◯ |

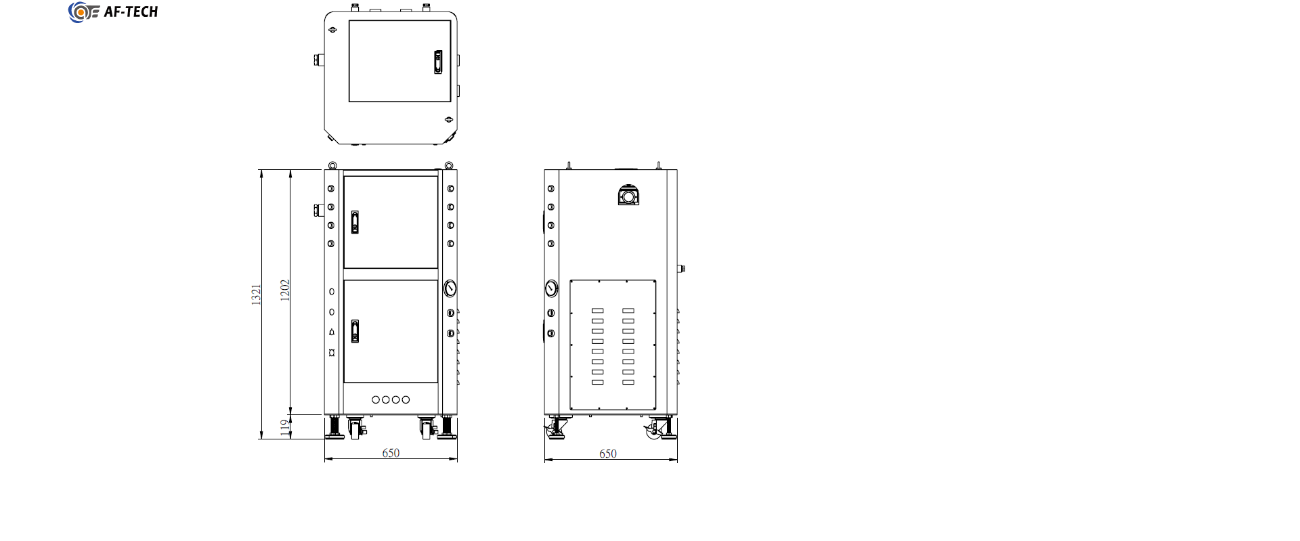

| Size(mm) | 650x650x1321 |
| Water Tank Cpacity(Liter) | 100 |
| Maximum Operating Pressure(Bar) | 70 |
| Maximum Water Flow Rate(L/MIN) | 30 |
| Applicable voltage(V) | 220V |
| Applicable frequency(Hz) | 50Hz/60Hz |
| Filtration Accuracy(μ) | 40μ |
| Filter Type | Single-channel High-flow Filter |
◯＝Standard ▲＝Option Ｘ＝N/A
